Description

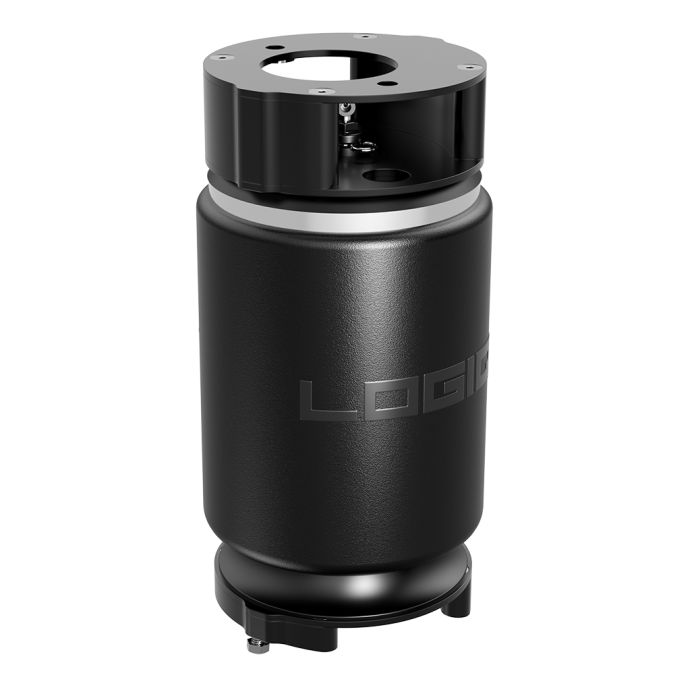

Upgrade your RAM 2500 with LOGIQ’s Air Spring Kit—a coil replacement solution that swaps factory coils (or factory air) for primary air at the rear axle. This 100% factory-assembled kit is engineered for your truck and delivers unmatched ride comfort when unloaded, enhanced stability under load, and adjustable height for easier trailer hookup or cargo access. It fits trucks at factory height and up to 3" lifts right out of the box, with upgrade options available for 3–6" lift kits.
Upgrade your RAM 2500 with LOGIQ’s Air Spring Kit—a coil replacement solution that swaps factory coils (or factory air) for primary air at the rear axle. This 100% factory-assembled kit is engineered for your truck and delivers unmatched ride comfort when unloaded, enhanced stability under load, and adjustable height for easier trailer hookup or cargo access. It fits trucks at factory height and up to 3" lifts right out of the box, with upgrade options available for 3–6" lift kits.
This system is also a direct replacement for RAM 2500 models equipped with factory air suspension. If retaining the factory air management system, a 6mm-to-¼" push-to-connect adapter (not included) will be required.
WARNING - Never exceed manufacturer's Maximum Payload or GVWR
"Faster Installation - No drilling required... Simple “clamp around” bracket designs combined with 100% pre-assembly cuts installation time in half!
5th Wheel Hitch Integration - Compatible with all 5th wheel hitches.
Precision Fitment - Built-in features that locate off the factory frame and leaf spring locations guarantee proper fitment, geometry, and operation for every install.
Properly Scaled to Match the Size of Your Truck - Rather than using the archaic “one-size-fits-all” approach, LOGIQ properly scales the air spring size and quantity to truly maximize your specific truck’s towing and hauling capability.
Improved Ride Quality, Stability, and Load Support - Competitor double-bellow style air springs have a natural frequency of ~2.5Hz (close to race car stiffness). LOGIQ Air Springs have a 1.6Hz natural frequency to ensure that you will feel the difference.
More Suspension Travel - Competitors limit the factory travel and typically eliminate the OE bump stops. LOGIQ Air Spring Kits have improved suspension travel and retain the factory bump stops for optimal suspension performance.
Ride Height = factory to +3". For lift amount +3" to +6" add spacer kit 89-12140-3. Includes heat wrap kit for tailpipe.
5th Wheel Hitch Integration - Compatible with all 5th wheel hitches.
Air Spring Location: Axle Mounted Inboard Frame Rails
Air Spring Quantity: 2
Lifting Force: 8,200 lbs @ 150 psi
Payload Capacity: 5,000 lbs @ 150 psi
Maximum Pressure: 150 psi
Minimum Pressure: 20 psi
